Power Bi - How to Add a Table from the Presentation Layer into the .Pbit Model

Introduction

This guide provides step-by-step on how to add new data tables from the presentation layer, to optimise your reporting capability. This can be useful because we only include tables that are required for the reports to aide performance - the more tables included the slower the performance!

As we add more data, if the new field is included on an existing table in the model then they will automatically be added into the model.  If they are associated to a new table then you will need to add the new table to the model. In this guide you will learn how to do just that.



User Roles

  • Approved Data Warehouse Users

 How to: Add a Table from the Presentation Layer into the .pbit Model



Below are the steps on how to do this from within PowerBI:

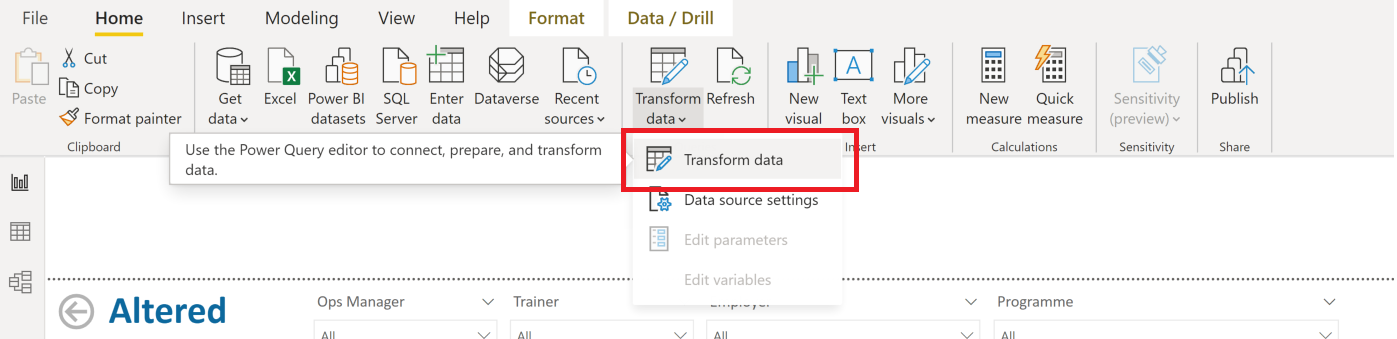

Step One :  Select transformation data

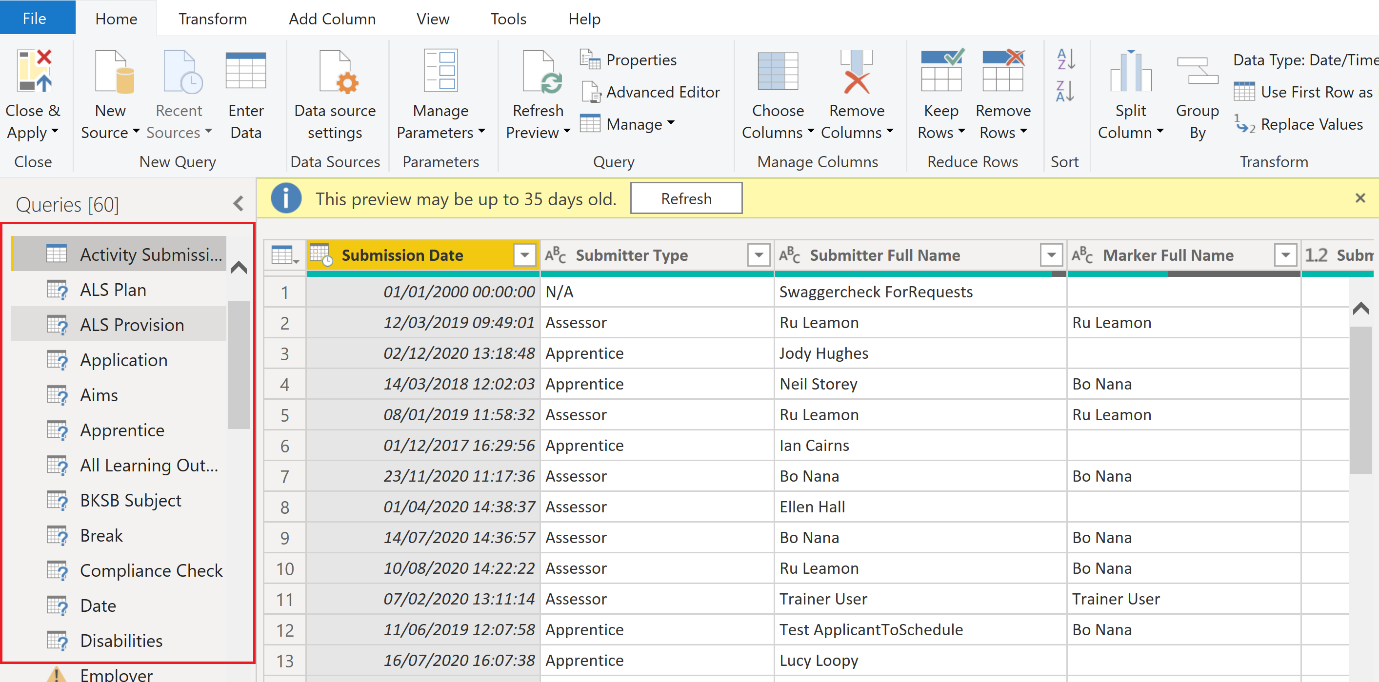

Step Two : Select any table

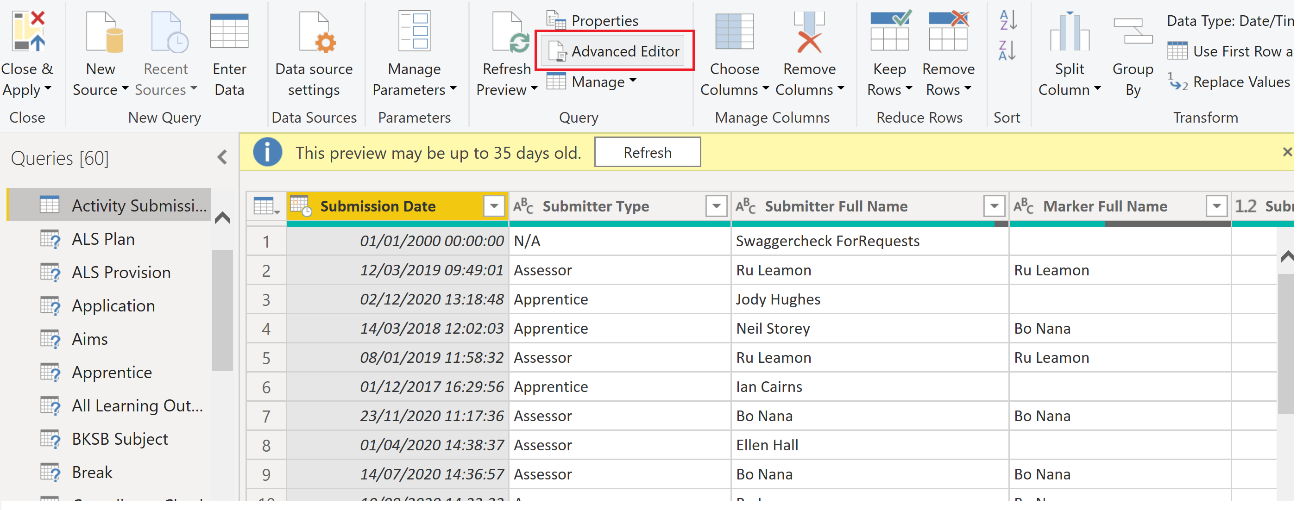

Step Three : Select  “advance editor” from the ribbon




Step Four : Copy the M code in the advanced editor






Step Five: Select “New Source” and “blank query”

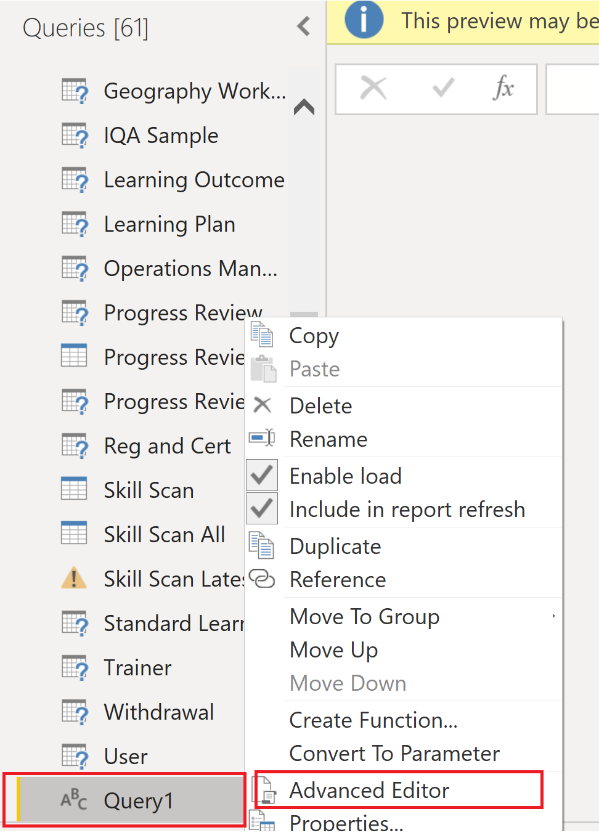

Step Six: Select “advanced Editor” on the blank query

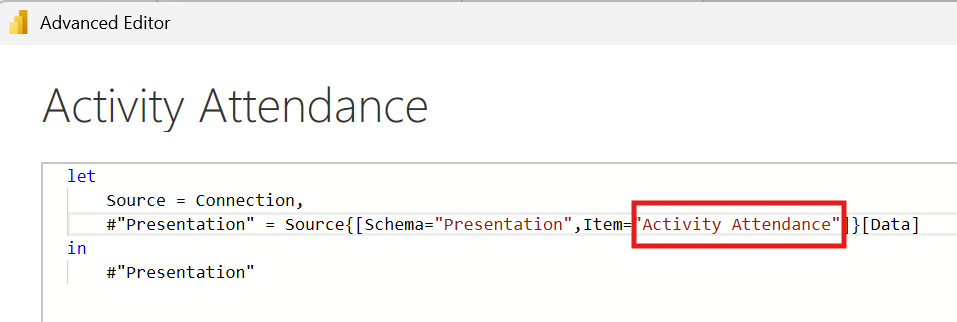

Step Seven  : Paste the Copied M code modifying to include the required table

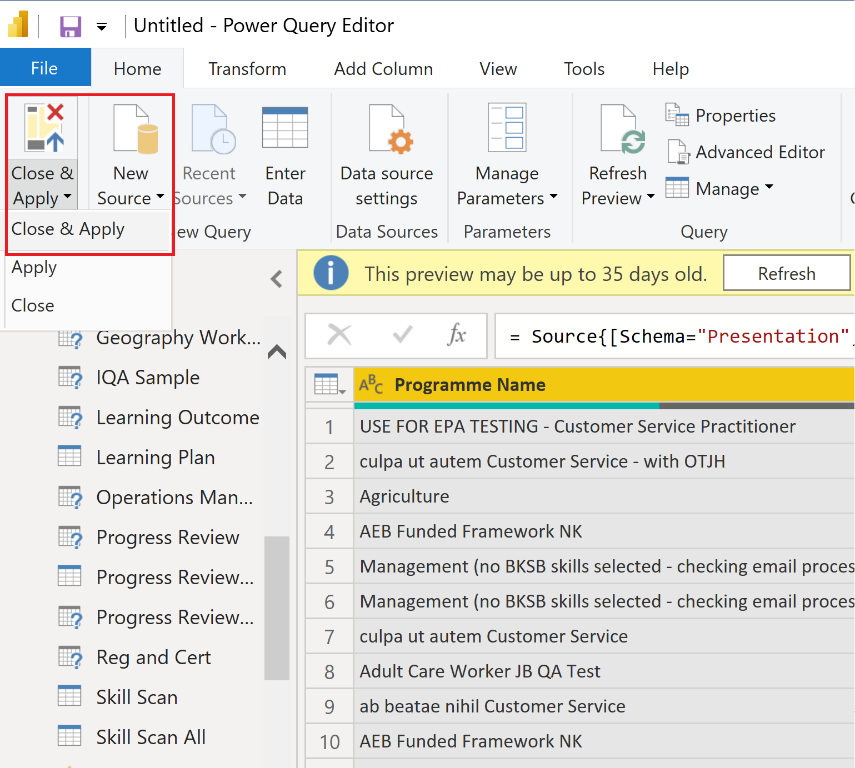

Step Eight : Close and Apply




Step Nine  Manage Relationships , please note it is not recommended to use the auto detect relationships


Select the model:

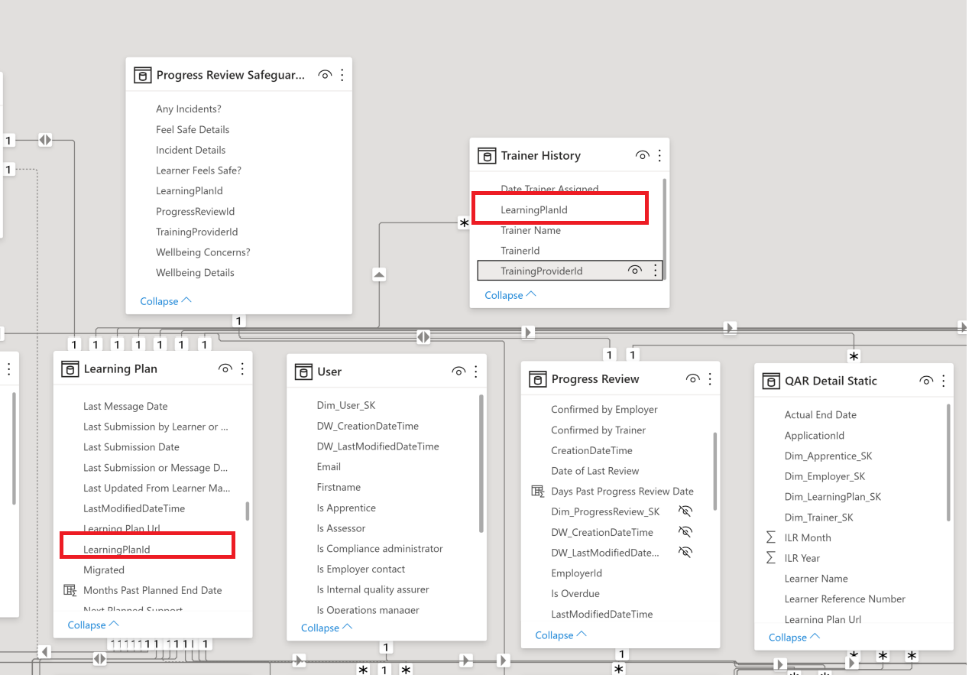

Connect the new table to existing tables: drag and drop the connection point


Step Ten: Set the cardinality

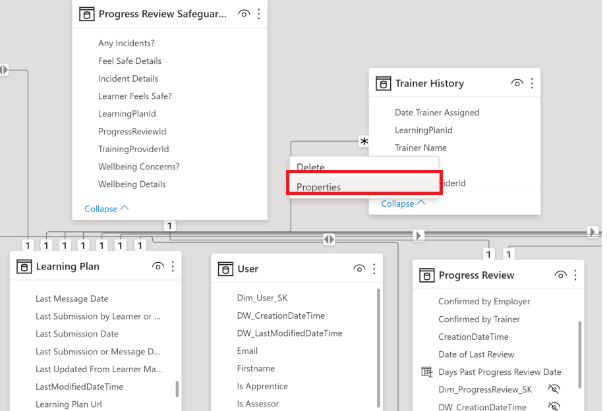

 Right click and select properties



N.B: Make sure that the relationships is marked as active.
